“上海全氏真空冷冻干燥机 冷冻真空干燥机”参数说明
| 型号： |
面议 |
规格： |
面议 |
| 商标： |
面议 |
包装： |
面议 |
| 结构： |
滚筒式干燥器 |
操作方法： |
面议 |
| 运动方式： |
面议 |
产量： |
100 |
“上海全氏真空冷冻干燥机 冷冻真空干燥机”详细介绍
1.1?Productivity??
| Vacuum?freeze?dryer
|
QS-150
|
| Efficient?area?of?plates?有效作用面积
|
152m2
|
| Max.?catch?water?最大作用面积
|
2500kg/batch
|
| Drying?type?
|
Radiation?辐射式
|
| Structure
|
Separated?type??(?which?means?that?the?vacuum?system,?refrigeration?system?and?drying?tank?are?separated?from?the?main?chamber,?condenser?on?the?bottom?of?the?chamber)
|
?Electric?Requirements??电源要求
| Voltage?电压
|
415V
|
| Frequency?频率
|
50Hz?
|
| Chase?相
|
3
|
| Power?功率
|
307Kw
|
1.2??Auxiliary?Services??辅助设施
Water?for?evaporative?condenser?
? |
Recirculated?water,?flow?of?150T/Hr，<280C?once?that?the?piping?circuit??and?condenser?are?full,?water?consumption?is??up?to?3000l/hr?by?the?effect?of?evaporation?(depends?of?environment?conditions)
|
| Water?for?tank??(Or?Silicone?Oil)
|
Water?tank?for?heating?volume??1500x?3000,?consumption?around?of?50L-100L/24hrs?by?the?effect?of?evaporation.?(Evaporation?is?very?low,??if?use?silicone?oil)
|
| Industrial?steam?
|
100kg/hr?@?0.3~0.5Mpa
|
| Compressed?air
|
100L/Min?@?6?bar?
|
 1.3?General?Information???整体信息

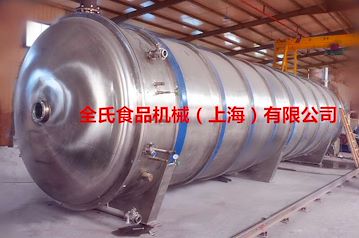

Dry?oven?size?
干燥箱尺寸
|
Round??￠2560*11700?大致直径2400，长11875.
Total?dimensions?with?chamber?open:?3160?x?11700?x?3210?mm
|
| Net?weight?净重
|
40000kg
|
|
